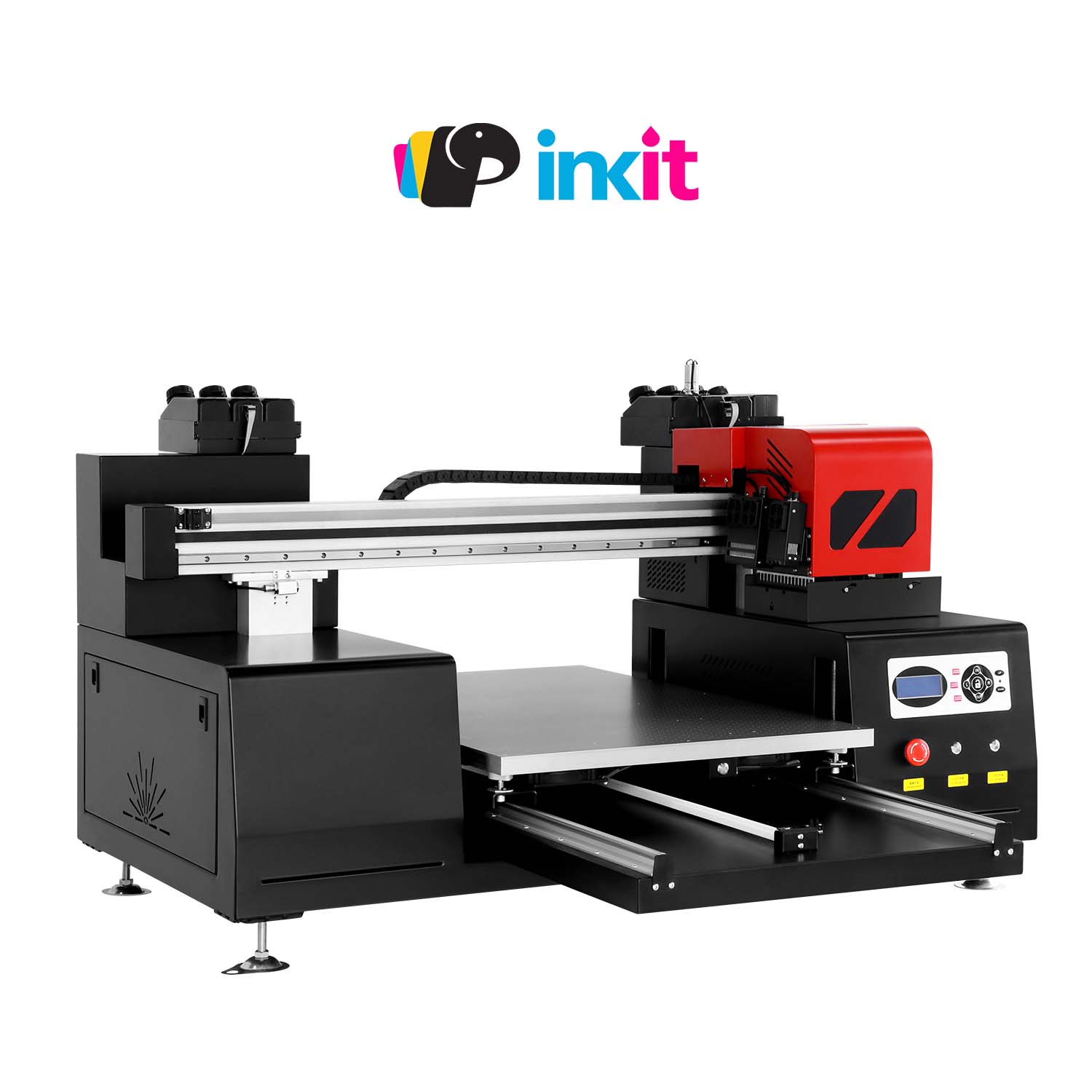

Inkit-6090S A1 UV Flatbed Printer
Professional White + CMYK + Varnish Ink System for Custom Printing

The Inkit-6090S UV Printer is a high-performance A1 UV flatbed printer designed for businesses that demand precision, versatility, and premium visual effects. Equipped with an advanced CMYK + White + Gloss ink system, it delivers vivid colors, strong white ink coverage, and eye-catching 3D embossed and gloss finishes on both rigid and flexible materials.

Wide Material Compatibility

Print directly on a broad range of substrates, including phone cases, PVC cards, power banks, leather, glass, wood, stone sheets, pens, golf balls, and bottles. Ideal for personalization, promotional products, and small-batch production.

White + Varnish Ink for Premium Effects

The independent white and gloss channels enable printing on dark and transparent materials while creating outstanding 3D embossed textures and spot gloss effects that significantly increase product value.

High-Resolution Output

Supports printing resolutions up to 2880 dpi, ensuring sharp text, smooth gradients, and fine image details for professional-grade results.

Wraparound & Group Printing Capability

Capable of wraparound printing on cylindrical items such as water bottles, candles, and cosmetic containers. Custom jigs can be designed to print multiple items simultaneously, improving efficiency and consistency.

Servo motor–driven printing table for high-precision positioning

Negative pressure ink supply system for stable and smooth ink flow

Automated printhead cleaning system for safer operation and reduced maintenance

CNC-machined X-axis and printhead holder for long-term accuracy

Technical Specifications

Printing Size: 600 × 900 mm (23.6 × 35.4 inches)

Printing Technology: UV LED

Printing Speed: Approx. 12 minutes per 60 × 90 cm format

Ink Configuration: CMYK + White + Gloss UV inks

Printing Modes: 8 pass / 12 pass / 16 pass

Maximum Media Thickness: Up to 20 cm (7.87 inches)

Maximum Resolution: Up to 2880 × 1440 dpi

Printheads: 3 pcs Epson (F1080, Made in Japan)

RIP Software: RIPrint (Hosonsoft) – RIP & printing in one, easy to operate

Interface: Network cable

Operating System: Windows PC

Machine Dimensions & Weight

Printer Size: 140 × 130 × 73 cm (55.1 × 51.2 × 28.7 inches)

Shipping Size: 150 × 141 × 97 cm (59 × 55.5 × 38.2 inches)

Printer Weight: 180 kg

Shipping Weight: 270 kg

Working Noise: 35–70 dB

What’s Included Inkit-6090S UV Printer:Power cable,User manual,USB driver & keydog,Spare parts package,Extra dampers,Ink tunnel and accessories

The Inkit-6090S UV Printer is an excellent choice for print shops, customization studios, and manufacturers looking to expand into high-margin UV printing with white ink and gloss effects.
