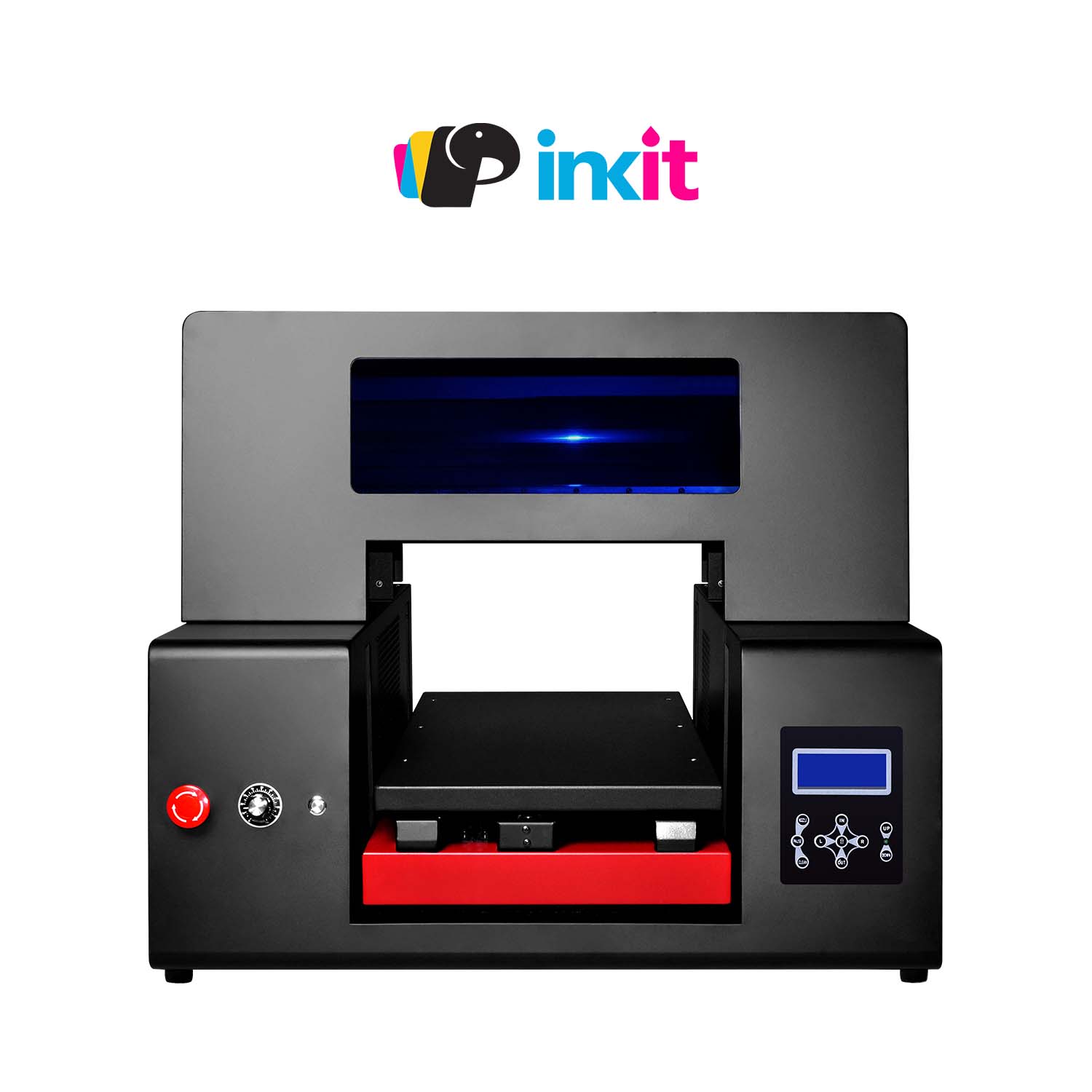

White+ CMYK Ink System
A3+ 330mm*600mm
3D Embossed Printing
Resolution up to 2880dpi
- Ability to print on various media(phone case, pvc cards, power banks, promotion items, leather, glass, Wood box, Stone sheet, even golf-balls or Bottle etc.)
- Different printing resolution from 720dpi to 2880dpi
- Multiple layers printing for an outstanding 3d effect

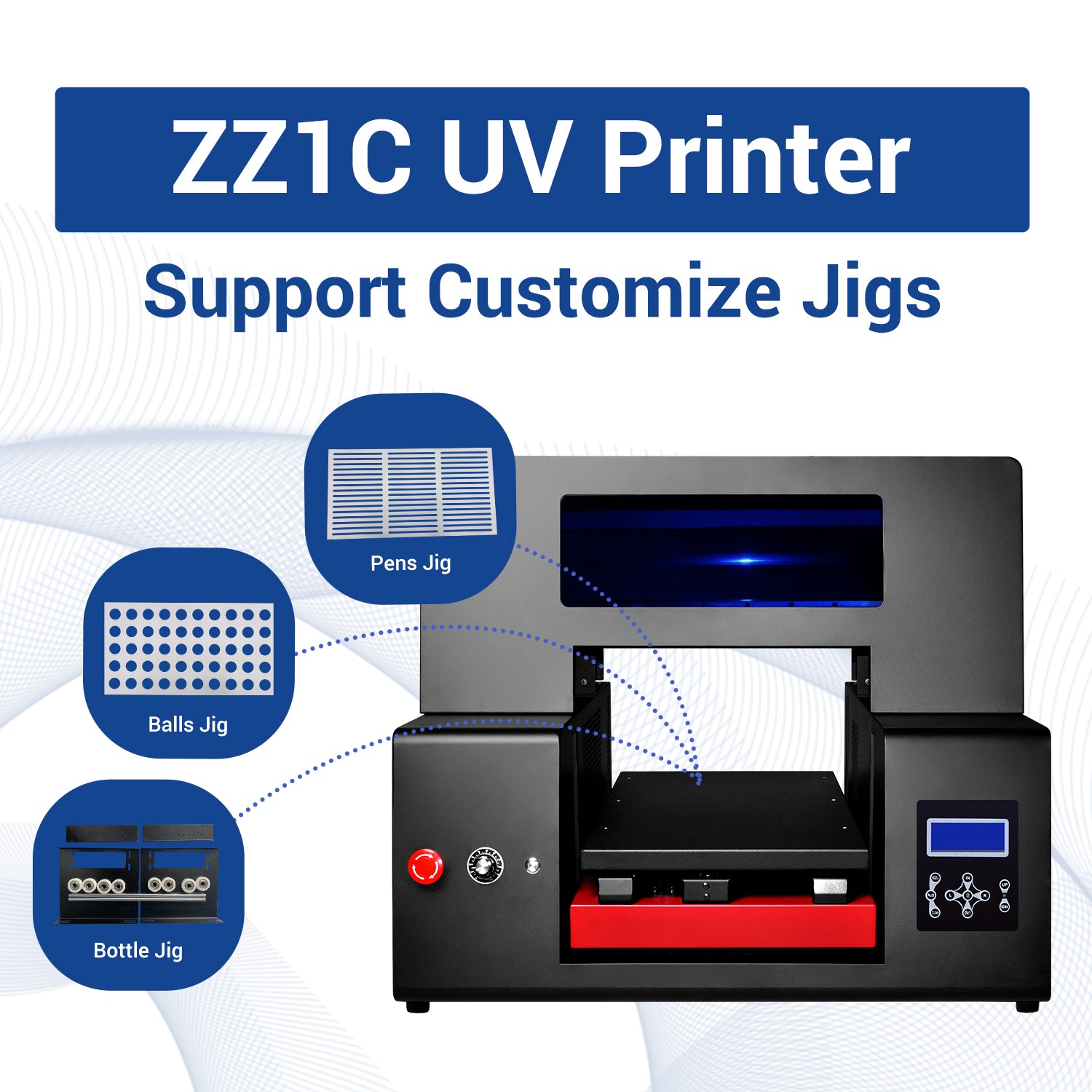

- We can Design Jigs to Printing items group by group Direct printing on Substrates, even on Electronic Devices.
- White inks channel(CMYKWW) for printing on dark and transparent materials.
- Outstanding printing for exclusive ideas on both rigid and flexible substrates.

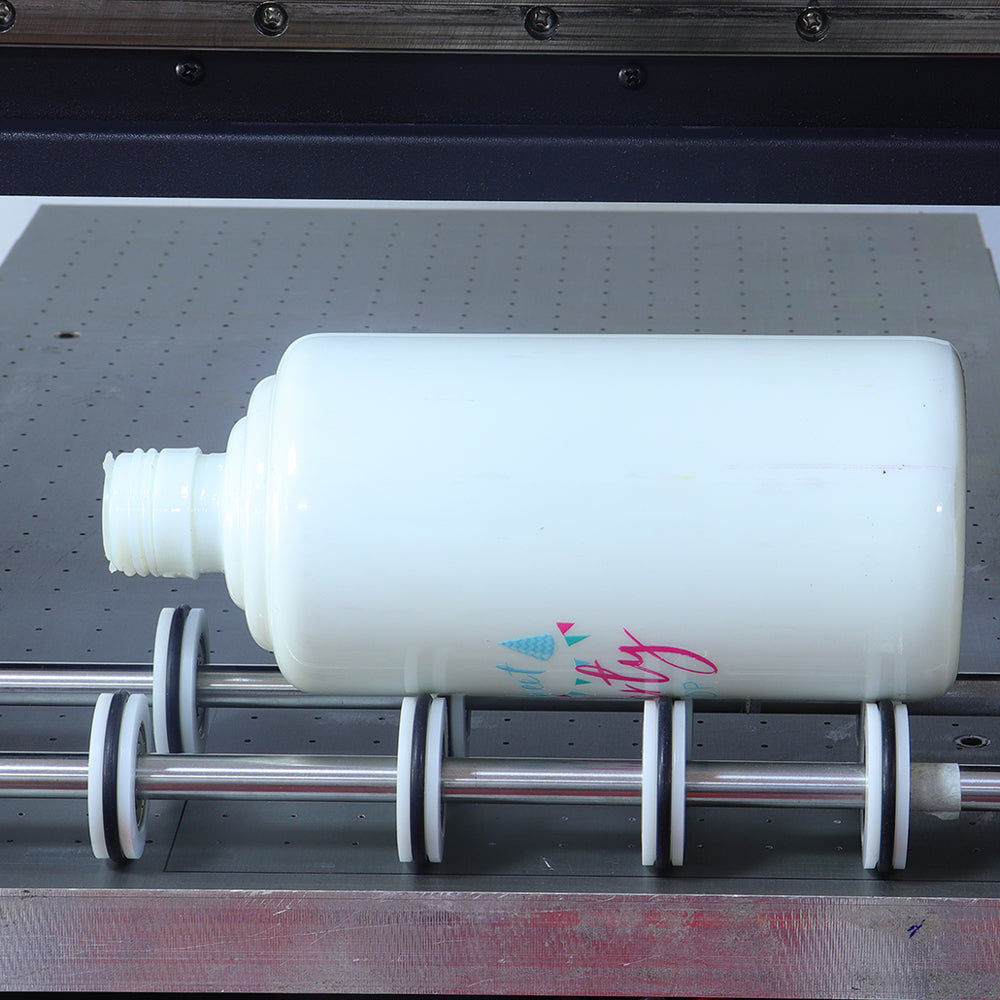

- Do full wraparound printing on water bottle, candle, even tiny cosmetic bottles
Highly Performance
- Precision printing due to the servo motor driven printing table.
- Optimal cost saving due to the continue inks supply system and simplified maintenance. Safe operation with the Automated printhead cleaning system.
- Extended UV led life due to build in water circle & fan cooling system.
- Printhead keep good condition with the flash on ink firing technology
Printing parameters
Printing Size: 33×60 cm
Printing Technology: UV Led
Printing Speed: 3minutes/A4
Inks UV Inks: CMYK+White
Application: Mobile phone cases, cards, stone sheet, Leather, wood, pens, golf-ball, bottles
Printing modes: 8pass/12pass/16pass
Thickness: Up to 20cm(7.87inches)
Resolution: Up to 2880×1440 dpi
Print head: On demand Epson XP600 Piezo electric printhead. Made-in-Japan.
Printer’s specification
Interface NetworkCable
Operating system Windows PC
Printer size 870×780×650mm(35.4×34.6×25.6inch)
Shipping size 980×910×830mm
Printer Weight 55KG
Shipping Weight 85KG
Flatbed Transmission ServoMotor
Content of box: USBline, powercable,user’s manual book, spare parts package, USB Driver, Keydog, extra dampers, Inks tunnel etc
RIPrint.exe: Layout Editing platform, resize, mirror, text, color adjustment, resolution... Printexp.exe: Seting the Original Printing position, Printing direction, Inkjet wayand nozzles numbers...
