White+ CMYK+ Gloss Ink System
A3+ 330mm*600mm
3D Embossed &Gloss Effect
Resolution up to 2880dpi
Vacuum Table / Suction Platform

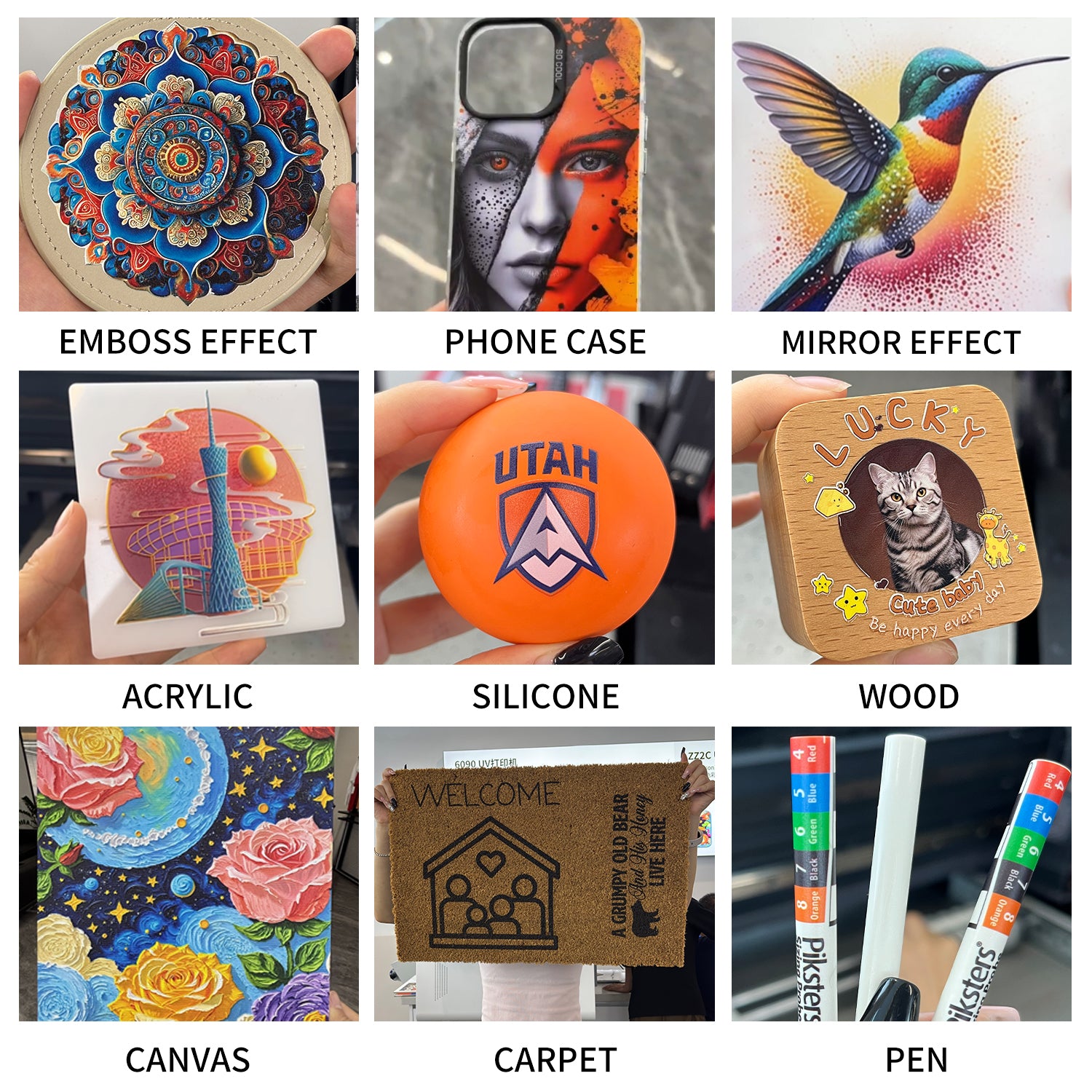

Ability to print on various media(phone case, pvc cards, power banks, promotion items, leather, glass, Wood box, Stone sheet, even golf-balls or Bottle etc.)
Different printing resolution from 720dpi to 2880dpi
Multiple layers printing for an outstanding 3d &Gloss effect

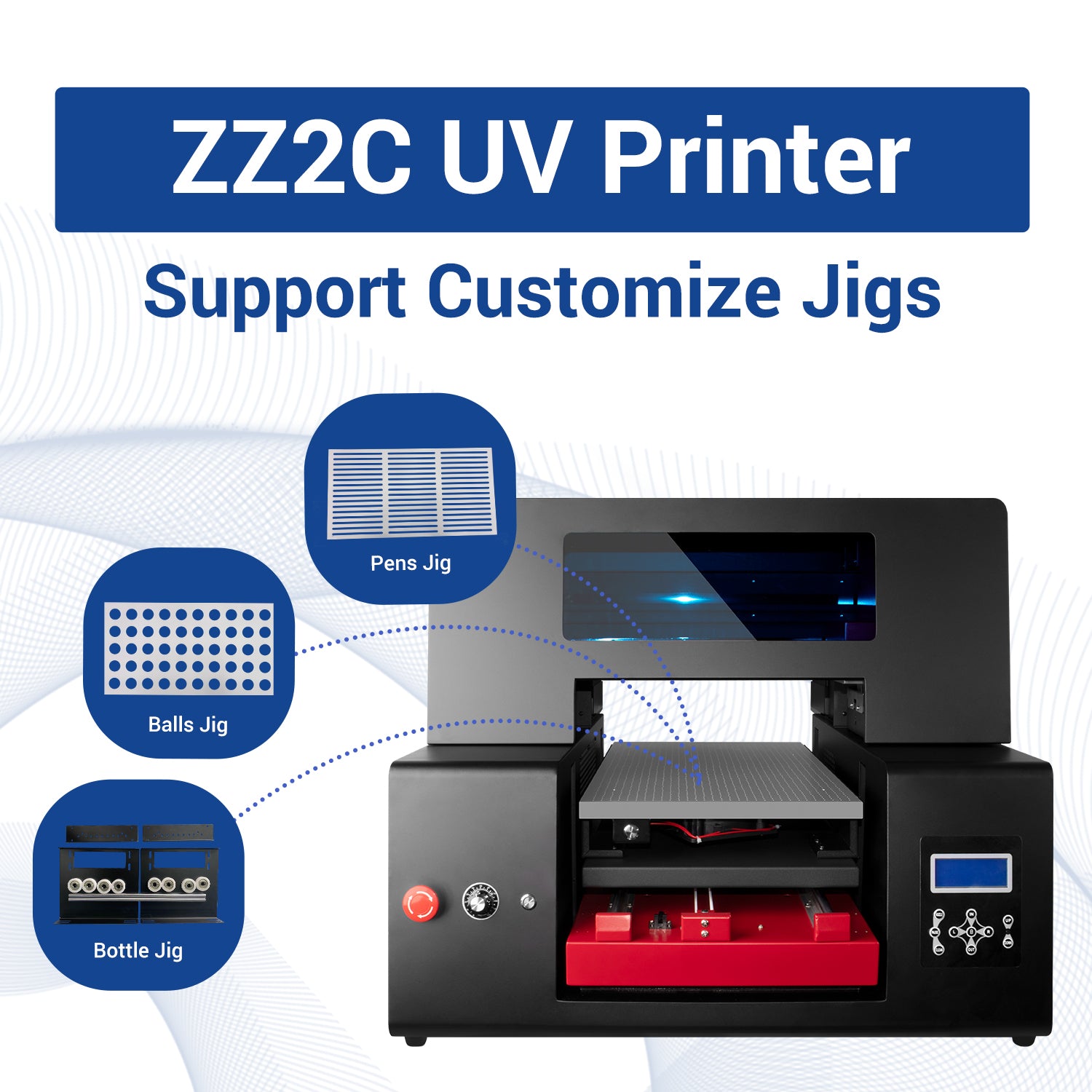

We can Design Jigs to Printing items group by group

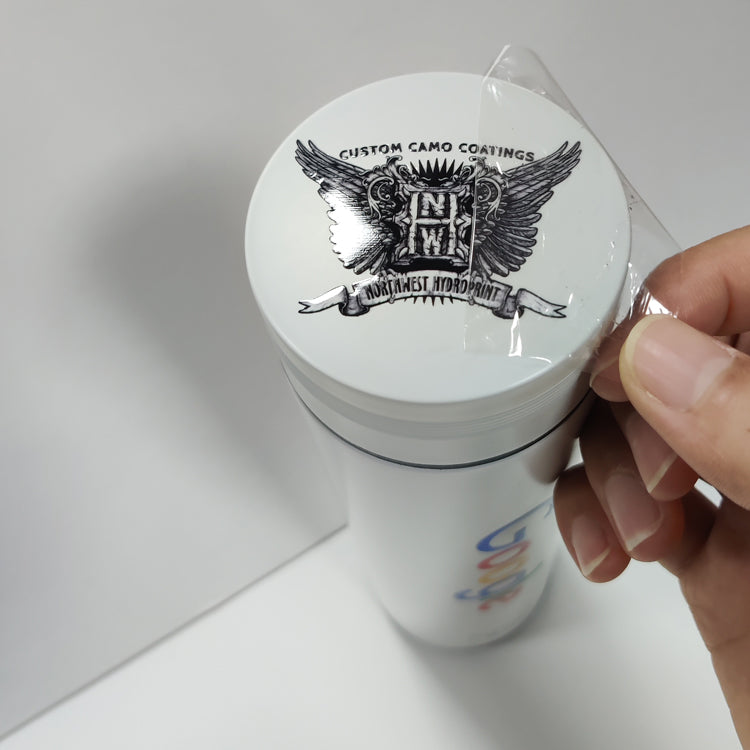

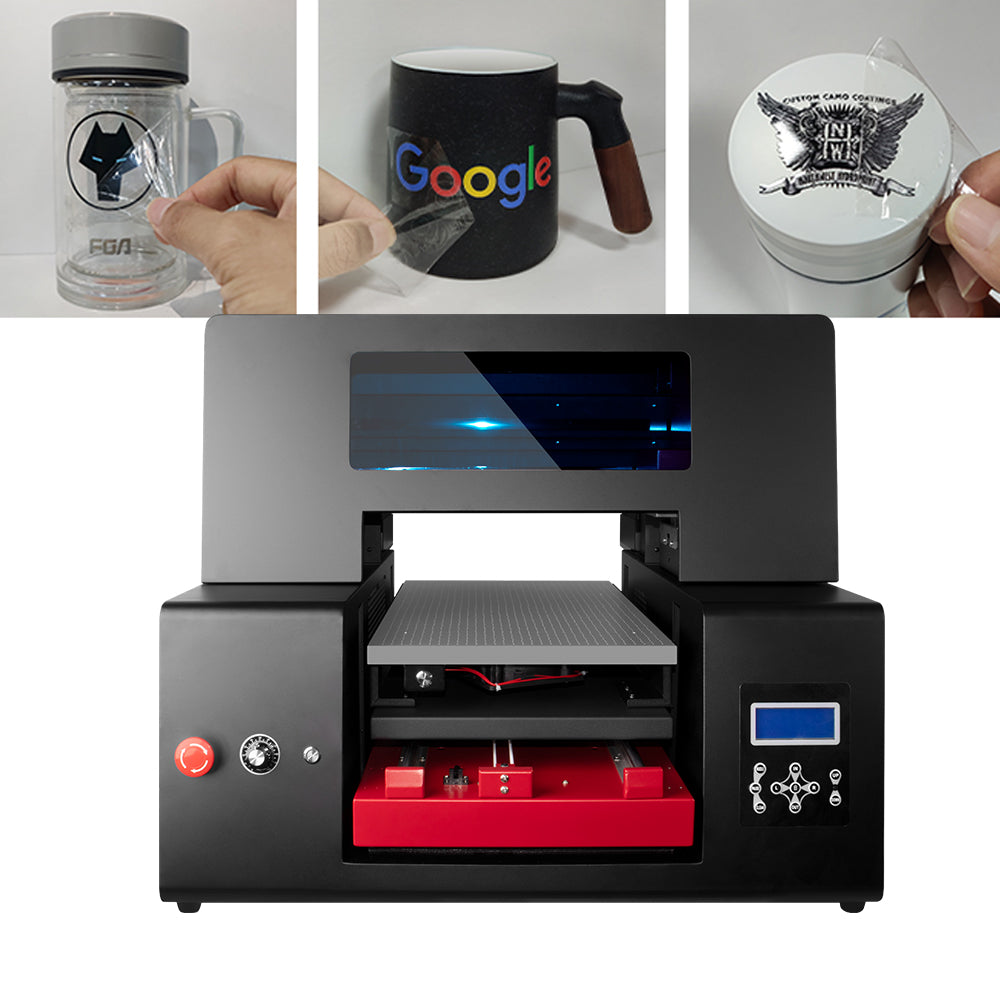

Direct printing on Substrates or Printing on PET A film then transfer to Irregular items.
White & Gloss inks channel (CMYKW+Gloss)for printing on dark and transparent materials.
Outstanding printing for exclusive ideas on both rigid and flexible substrates.
Do full wraparound printing on water bottle, candle, even tiny cosmetic bottles
Highly Performance
- Precision printing due to the servo motor driven printing table.
- Optimal cost saving due to the continue inks supply system and simplified maintenance.
- Safe operation with the Automated printhead cleaning system.
- Extended UV led life due to build in water circle & fan cooling system.
- Printhead keep good condition with the flash on ink firing technology.
Printing parameters

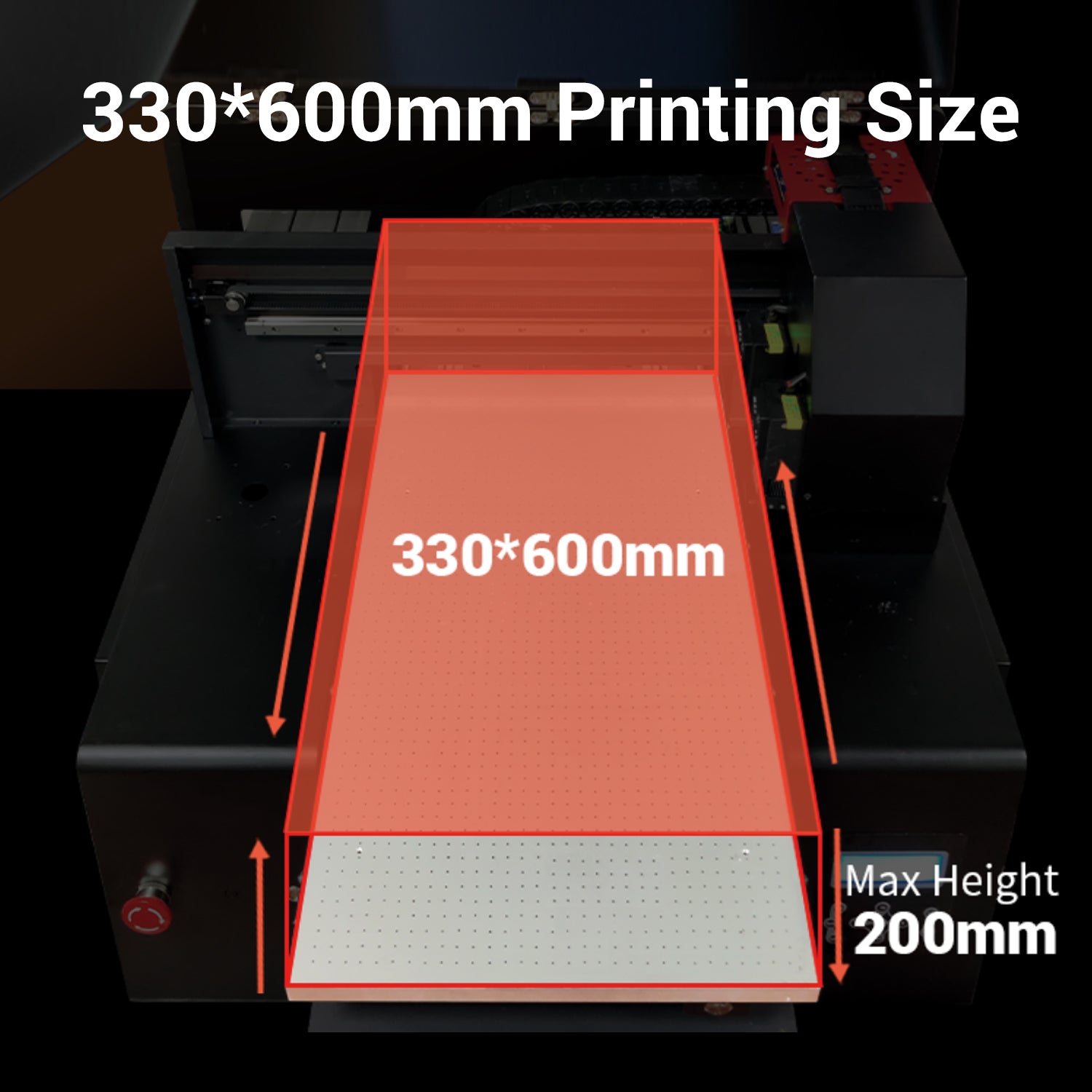

Printing Size: 33×60 cm(13×23.6 inch)
Printing Technology: UV Led
Printing Speed: 3minutes/A3
Inks UV Inks: CMYK+White+Gloss
Application: Mobile phone cases, cards, stone sheet, Leather, wood, pens, golf-ball, bottles
Printing modes: 8pass/12pass/16pass
Thickness: Up to 20cm(7.87inches)
Resolution: Up to 2880×1440 dpi
Print head: On demand Epson XP600 Piezo electric printhead. Made-in-Japan.
Printer’s specification
Interface: Network Cable
Operating system: Windows PC
Printer size 870×780×650mm(34.3×30.7×25.6inch)
Shipping size 980×910×830mm(38.6×35.8×32.7inch)
Printer Weight 56KG
Shipping Weight 87KG
Flatbed Transmission Servo Motor
Content of box: USB line, power cable, user’s manual book, spare parts package, USBD river, Key dog, extra dampers, Inks tunnel etc.
RIPrint.exe: Layout Editing platform, resize, mirror, text, color adjustment, resolution... Printexp.exe: Setting the Original Printing position, Printing direction, Inkjet way and nozzles numbers...
